Μηχανή εκτύπωσης οθόνης χαμηλού κόστους επιτραπέζιου οθόνης

Introduce

 80mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.

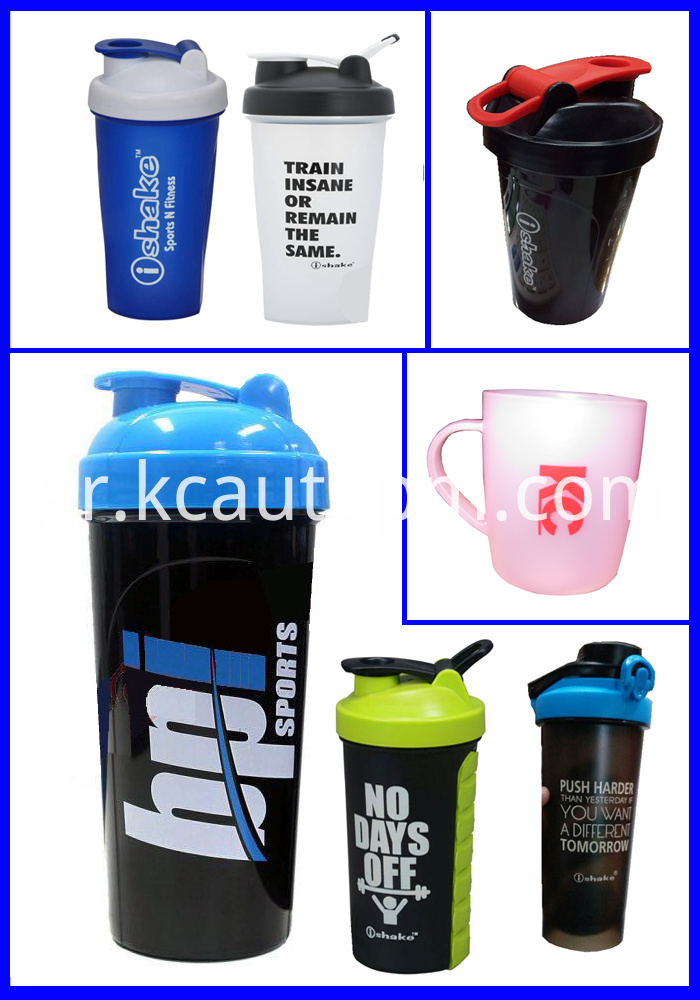

Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;

With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;

Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;

Upper and lower part of Screen plate, take place after the table automatically lifting the work piece;

You can use the foot switch for automatic operation, the safety factor greatly increased;

Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multi-functional , and reduce costs.

ST-60S Screen printing Machine //Parameters

•  The max printing thickness: 200 MM;
• Air consumption: 75 Lit/Min;
• Outline size: 1080×850×1280MM;
• The max printing area : 200×250MM;
• Dimension of working table: 250mm×300mm;
• Max printing speed: 1300Pc/H;
• Max frame dimension: 410×350mm;
• Stroke of Squeegee: 250mm;
• Stroke of Table cylinder: 60mm;
• Max Diameter of Products: 75mm;
• Max length of Products: 300m

Advantage

• Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
• Contact with the substrate , up and down of screen plate, to facilitate the placement of the substrates and removed;
• High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
• High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
• Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
• Microcomputer control program operations, set up a variety of modes;
• Four counts digital LED count, high degree of automation;
• Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
• Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
